Product Details
Mounting Hole
Installation Temperature
Thickness
Uncoated
Coated
Operating Temperature
Minimum
Maximum
Material
Description

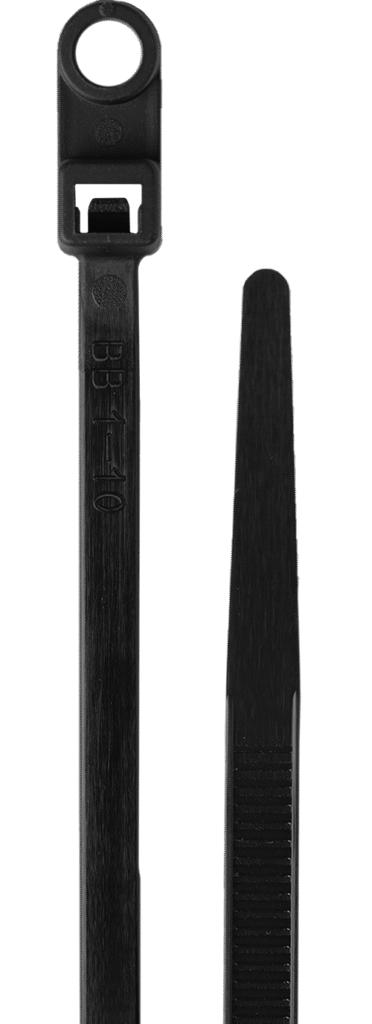

Mounting hole cable ties are meant for applications where the cable bundle must stay in a defined position on a wall, panel, machine frame or chassis. The integrated hole allows the tie to be fixed with a screw or rivet, which is useful when routing accuracy matters more than installation speed alone. Tycab lists this variant with a -40°C to +85°C operating range and minimum installation temperature of -10°C, making it suitable for control panels, machinery, vehicles, HVAC cabinets and equipment housings.
| Product Code | Description | Length | Width | Tensile Strength | Bundle Diameter (mm) | Operating Installation | Minimum Installation Temperature | Additional | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inches | mm | inches | KGF | LBS | Newtons | Maximum | Minimum | Minimum | Maximum | ||||
| TY 150 X 3.6 MT | Mounting Hole | 150 | 5.91 | 3.6 | 0.142 | 18.0 | 40 | 177 | 30 | 3 | -40°C | +85°C | -10°C | Mounting Hole Dia-5 mm |
| TY 200 X 4.8 MT | Mounting Hole | 200 | 7.87 | 4.8 | 0.189 | 22.7 | 50 | 223 | 45 | 3 | -40°C | +85°C | -10°C | Mounting Hole Dia-5 mm |
| TY 300 X 4.8 MT | Mounting Hole | 300 | 11.81 | 4.7 | 0.185 | 22.7 | 50 | 223 | 76 | 3 | -40°C | +85°C | -10°C | Mounting Hole Dia-5 mm |
| TY 378 X 4.8 MT | Mounting Hole | 370 | 14.87 | 4.8 | 0.189 | 22.7 | 50 | 223 | 100 | 3 | -40°C | +85°C | -10°C | Mounting Hole Dia-5 mm |
