Product Details

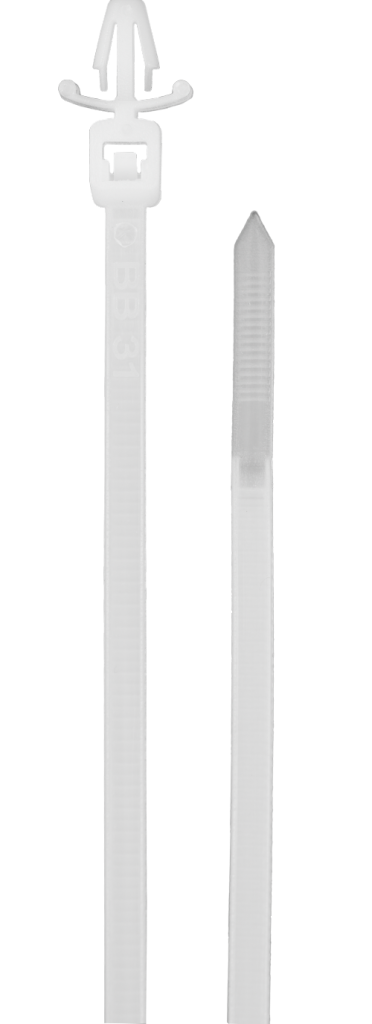

Push Mount Tie
Installation Temperature
Thickness
Uncoated
Coated
Operating Temperature
Minimum
Maximum
Material
Description
Push mount ties are used when cables need to be bundled and fixed to a panel or chassis in one step. The push-in anchor snaps into a pre-drilled hole, which reduces the need for separate clips and helps maintain clean routing on equipment frames and sheet-metal assemblies. Tycab lists this variant with a -40°C to +85°C operating range and minimum installation temperature of -10°C, making it a practical choice for appliances, automotive interiors, switchgear, cabinets and general OEM production.
| Product Code | Description | Length | Width | Tensile Strength | Bundle Diameter (mm) | Operating Installation | Minimum Installation Temperature | Additional | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inches | mm | inches | KGF | LBS | Newtons | Maximum | Minimum | Minimum | Maximum | ||||
| TY 155 X 3.6 PMT | Push Mount Tie | 155 | 6.10 | 3.6 | 0.142 | 18.0 | 40 | 177 | 34 | 3 | -40°C | +85°C | -10°C | Mounting Hole Dia=4.60 mm Chassis Thickness = 2.60 mm |
Have a question about this product?
