Product Details

Coated Tie

Installation Temperature

Minimum

Thickness

Uncoated

Coated

0.38mm

Operating Temperature

Minimum

-80 Deg C

Maximum

+150 Deg C

Material

Description

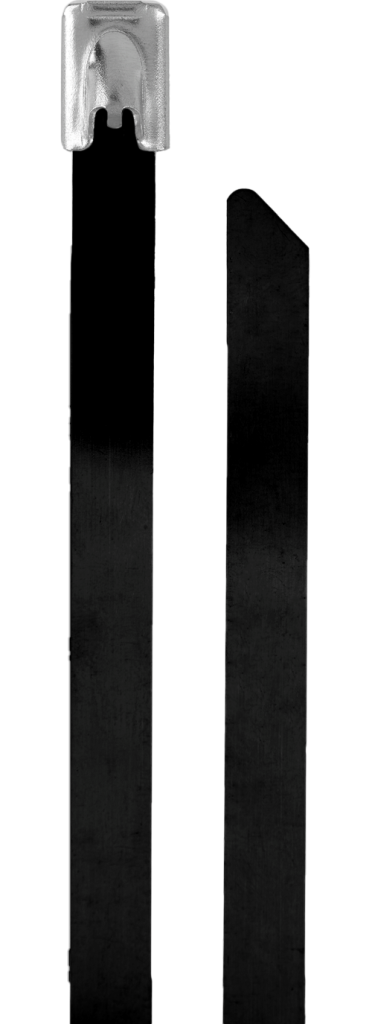

Coated stainless steel ties are used when the installation needs the strength and corrosion resistance of steel, but the bundle also benefits from a protective outer layer over the metal band. Tycab lists this version with a -80°C to +150°C operating range and coated thickness of 0.38 mm, making it suitable for marine, chemical, outdoor infrastructure, solar and heavy industrial applications. They should be chosen where harsh exposure is expected but direct metal-to-surface contact needs to be reduced.

Product Code Length Width Thickness Tensile Strength Bundle Diameter Maximum Operating Temperature
mm inches mm inches Uncoated Coated KGF LBS Newtons mm inches Minimum Maximum
TY-BL-C-304 200 X 4.6 200 7.87 4.6 0.181 0.25 0.38 70 154 686 50 1.97 -80 Deg C +150 Deg C
TY-BL-C-304 250 X 4.6 250 9.84 4.6 0.181 0.25 0.38 70 154 686 63 2.46 -80 Deg C +150 Deg C
TY-BL-C-304 300 X 4.6 300 11.81 4.6 0.181 0.25 0.38 70 154 686 75 2.95 -80 Deg C +150 Deg C
TY-BL-C-304 350 X 4.6 350 13.78 4.6 0.181 0.25 0.38 70 154 686 88 3.44 -80 Deg C +150 Deg C
TY-BL-C-304 400 X 4.6 400 15.75 4.6 0.181 0.25 0.38 70 154 686 100 3.94 -80 Deg C +150 Deg C
TY-BL-C-304 450 X 4.6 450 17.72 4.6 0.181 0.25 0.38 70 154 686 113 4.43 -80 Deg C +150 Deg C
TY-BL-C-304 500 X 4.6 500 19.69 4.6 0.181 0.25 0.38 70 154 686 125 4.92 -80 Deg C +150 Deg C
TY-BL-C-304 550 X 4.6 550 21.65 4.6 0.181 0.25 0.38 70 154 686 138 5.41 -80 Deg C +150 Deg C
TY-BL-C-304 600 X 4.6 600 23.62 4.6 0.181 0.25 0.38 70 154 686 150 5.91 -80 Deg C +150 Deg C
TY-BL-C-304 650 X 4.6 650 25.59 4.6 0.181 0.25 0.38 70 154 686 163 6.40 -80 Deg C +150 Deg C
TY-BL-C-304 700 X 4.6 700 27.56 4.6 0.181 0.25 0.38 70 154 686 175 6.89 -80 Deg C +150 Deg C
TY-BL-C-304 750 X 4.6 750 29.53 4.6 0.181 0.25 0.38 70 154 686 188 7.38 -80 Deg C +150 Deg C
TY-BL-C-304 800 X 4.6 800 31.50 4.6 0.181 0.25 0.38 70 154 686 200 7.87 -80 Deg C +150 Deg C
TY-BL-C-304 850 X 4.6 850 33.46 4.6 0.181 0.25 0.38 70 154 686 213 8.37 -80 Deg C +150 Deg C
TY-BL-C-304 900 X 4.6 900 35.43 4.6 0.181 0.25 0.38 70 154 686 225 8.86 -80 Deg C +150 Deg C
TY-BL-C-304 200 X 7.9 200 7.87 7.9 0.311 0.25 0.38 180 397 1765 50 1.97 -80 Deg C +150 Deg C
TY-BL-C-304 250 X 7.9 250 9.84 7.9 0.311 0.25 0.38 180 397 1765 63 2.46 -80 Deg C +150 Deg C
TY-BL-C-304 300 X 7.9 300 11.81 7.9 0.311 0.25 0.38 180 397 1765 75 2.95 -80 Deg C +150 Deg C
TY-BL-C-304 350 X 7.9 350 13.78 7.9 0.311 0.25 0.38 180 397 1765 88 3.44 -80 Deg C +150 Deg C
TY-BL-C-304 400 X 7.9 400 15.75 7.9 0.311 0.25 0.38 180 397 1765 100 3.94 -80 Deg C +150 Deg C
TY-BL-C-304 450 X 7.9 450 17.72 7.9 0.311 0.25 0.38 180 397 1765 113 4.43 -80 Deg C +150 Deg C
TY-BL-C-304 500 X 7.9 500 19.69 7.9 0.311 0.25 0.38 180 397 1765 125 4.92 -80 Deg C +150 Deg C
TY-BL-C-304 550 X 7.9 550 21.65 7.9 0.311 0.25 0.38 180 397 1765 138 5.41 -80 Deg C +150 Deg C
TY-BL-C-304 600 X 7.9 600 23.62 7.9 0.311 0.25 0.38 180 397 1765 150 5.91 -80 Deg C +150 Deg C
TY-BL-C-304 650 X 7.9 650 25.59 7.9 0.311 0.25 0.38 180 397 1765 163 6.40 -80 Deg C +150 Deg C
TY-BL-C-304 700 X 7.9 700 27.56 7.9 0.311 0.25 0.38 180 397 1765 175 6.89 -80 Deg C +150 Deg C
TY-BL-C-304 750 X 7.9 750 29.53 7.9 0.311 0.25 0.38 180 397 1765 188 7.38 -80 Deg C +150 Deg C
TY-BL-C-304 800 X 7.9 800 31.50 7.9 0.311 0.25 0.38 180 397 1765 200 7.87 -80 Deg C +150 Deg C
TY-BL-C-304 850 X 7.9 850 33.46 7.9 0.311 0.25 0.38 180 397 1765 213 8.37 -80 Deg C +150 Deg C
TY-BL-C-304 900 X 7.9 900 35.43 7.9 0.311 0.25 0.38 180 397 1765 225 8.86 -80 Deg C +150 Deg C
