Product Details
Uncoated Tie
Installation Temperature
Minimum
Thickness
Uncoated
0.25mm
Coated
Operating Temperature
Minimum
-80°C
Maximum
+540°C
Material
Description

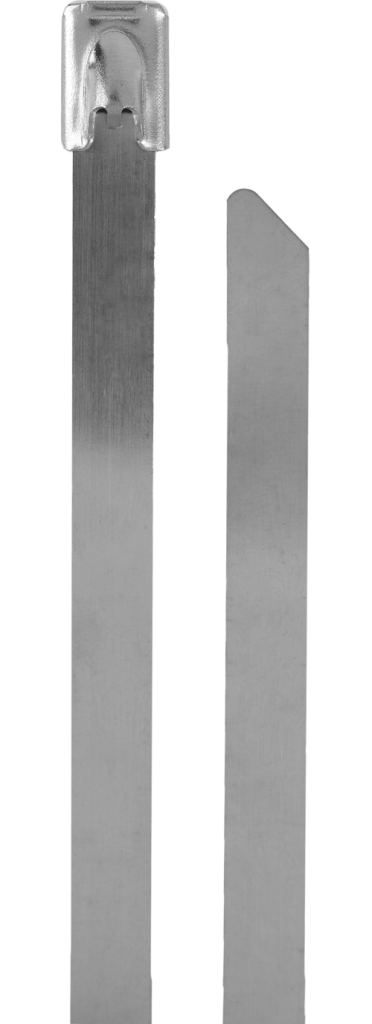

Uncoated stainless steel ties are meant for environments where nylon cable ties will not last because of heat, corrosion or mechanical exposure. Tycab lists this version with a -80°C to +540°C operating range and 0.25 mm uncoated thickness, making it suitable for refineries, power plants, marine installations, rail infrastructure, process industries and outdoor heavy-duty service. It should be used where long-term strength, flame resistance and environmental durability are more important than flexibility or low-cost installation.
| Product Code | Length | Width | Thickness | Tensile Strength | Bundle Diameter Maximum | Operating Temperature | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inches | mm | inches | mm | inches | KGF | LBS | Newtons | mm | inches | Minimum | Maximum | ||
| TY-BL-UC-304 | 200 X 4.6 | 200 | 7.87 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 50 | 1.97 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 250 X 4.6 | 250 | 9.84 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 63 | 2.46 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 300 X 4.6 | 300 | 11.81 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 75 | 2.95 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 350 X 4.6 | 350 | 13.78 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 88 | 3.44 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 400 X 4.6 | 400 | 15.75 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 100 | 3.94 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 450 X 4.6 | 450 | 17.72 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 113 | 4.43 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 500 X 4.6 | 500 | 19.69 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 125 | 4.92 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 550 X 4.6 | 550 | 21.65 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 138 | 5.41 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 600 X 4.6 | 600 | 23.62 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 150 | 5.91 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 650 X 4.6 | 650 | 25.59 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 163 | 6.40 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 700 X 4.6 | 700 | 27.56 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 175 | 6.89 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 750 X 4.6 | 750 | 29.53 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 188 | 7.38 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 800 X 4.6 | 800 | 31.50 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 200 | 7.87 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 850 X 4.6 | 850 | 33.46 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 213 | 8.37 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 900 X 4.6 | 900 | 35.43 | 4.6 | 0.181 | 0.25 | 0.01 | 70 | 154 | 686 | 225 | 8.86 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 200 X 7.9 | 200 | 7.87 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 50 | 1.97 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 250 X 7.9 | 250 | 9.84 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 63 | 2.46 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 300 X 7.9 | 300 | 11.81 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 75 | 2.95 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 350 X 7.9 | 350 | 13.78 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 88 | 3.44 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 400 X 7.9 | 400 | 15.75 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 100 | 3.94 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 450 X 7.9 | 450 | 17.72 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 113 | 4.43 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 500 X 7.9 | 500 | 19.69 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 125 | 4.92 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 550 X 7.9 | 550 | 21.65 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 138 | 5.41 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 600 X 7.9 | 600 | 23.62 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 150 | 5.91 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 650 X 7.9 | 650 | 25.59 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 163 | 6.40 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 700 X 7.9 | 700 | 27.56 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 175 | 6.89 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 750 X 7.9 | 750 | 29.53 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 188 | 7.38 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 800 X 7.9 | 800 | 31.50 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 200 | 7.87 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 850 X 7.9 | 850 | 33.46 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 213 | 8.37 | -80 Deg C | +540 Deg C |
| TY-BL-UC-304 | 900 X 7.9 | 900 | 35.43 | 7.9 | 0.311 | 0.25 | 0.01 | 180 | 397 | 1765 | 225 | 8.86 | -80 Deg C | +540 Deg C |
